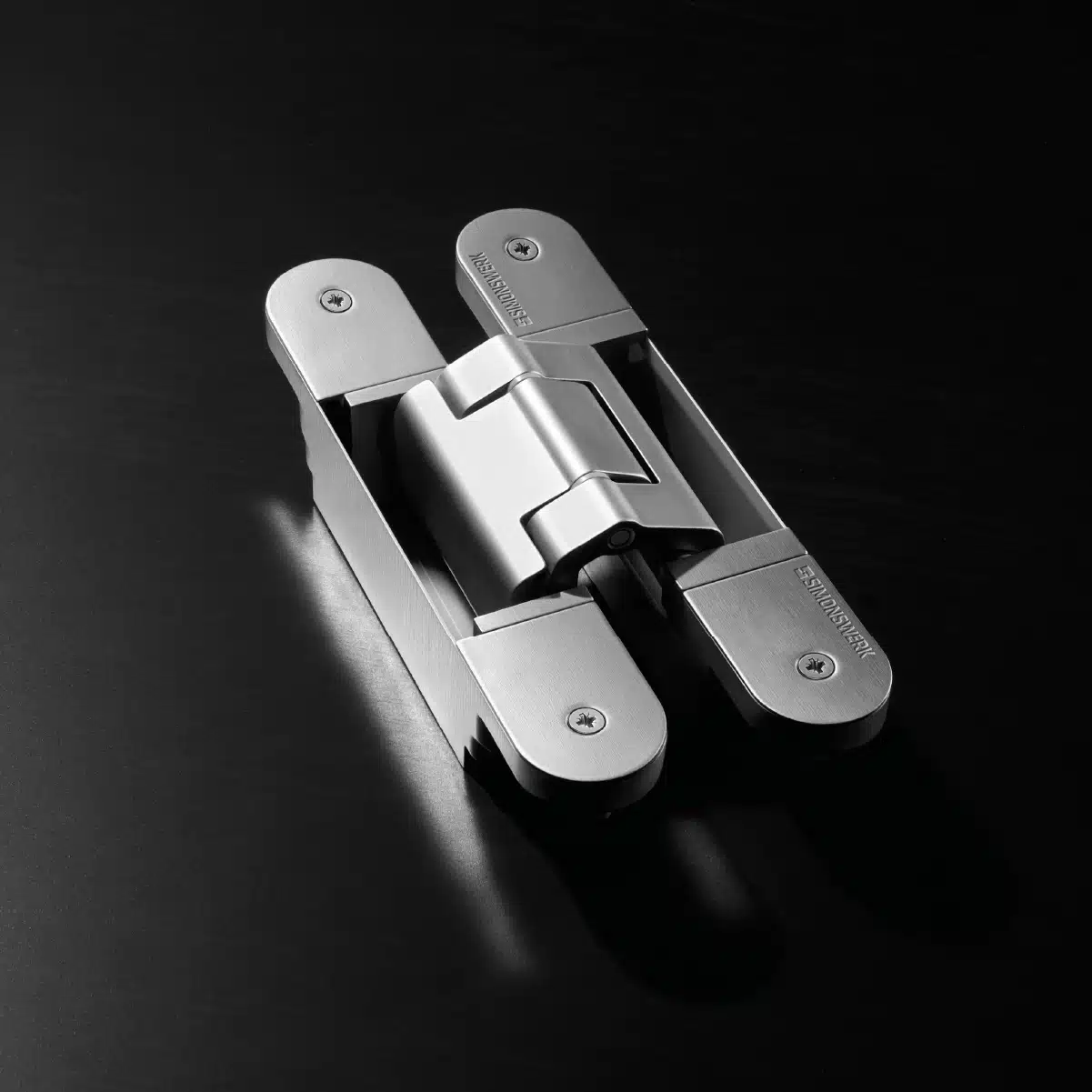

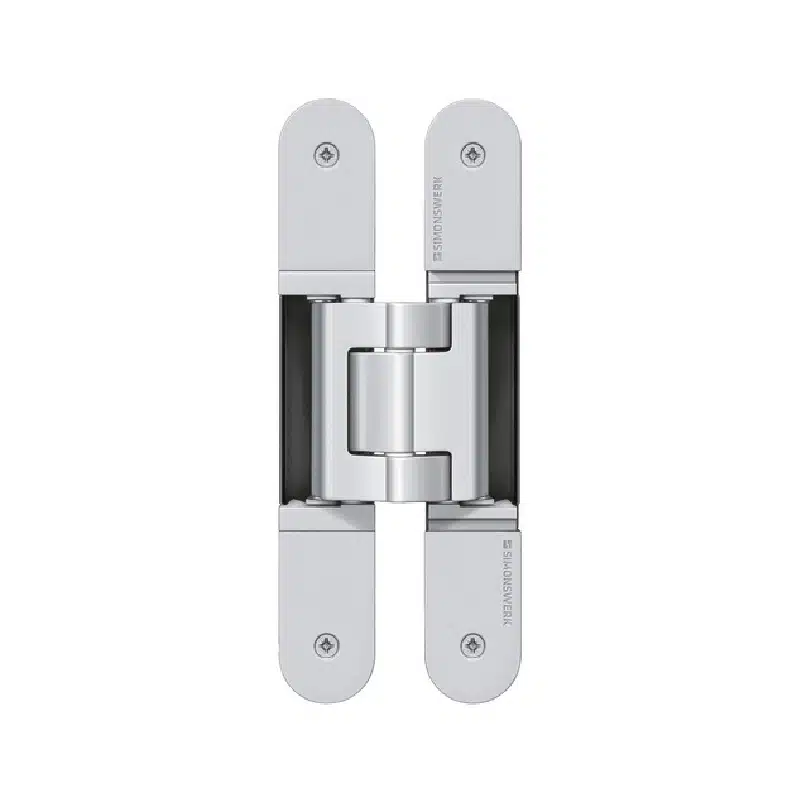

TE 540 3D (up to 120 kg.)

Details

The TE 540 3D extends its robust capabilities to a broader spectrum of projects, making it ideal for heavy-duty residential, commercial, and public building applications. Reflecting SIMONSWERK’s commitment to superior engineering, this hinge boasts an impressive load capacity of up to 120 kg (264 lbs) for two hinges, confidently supporting more substantial and demanding door leaf constructions.

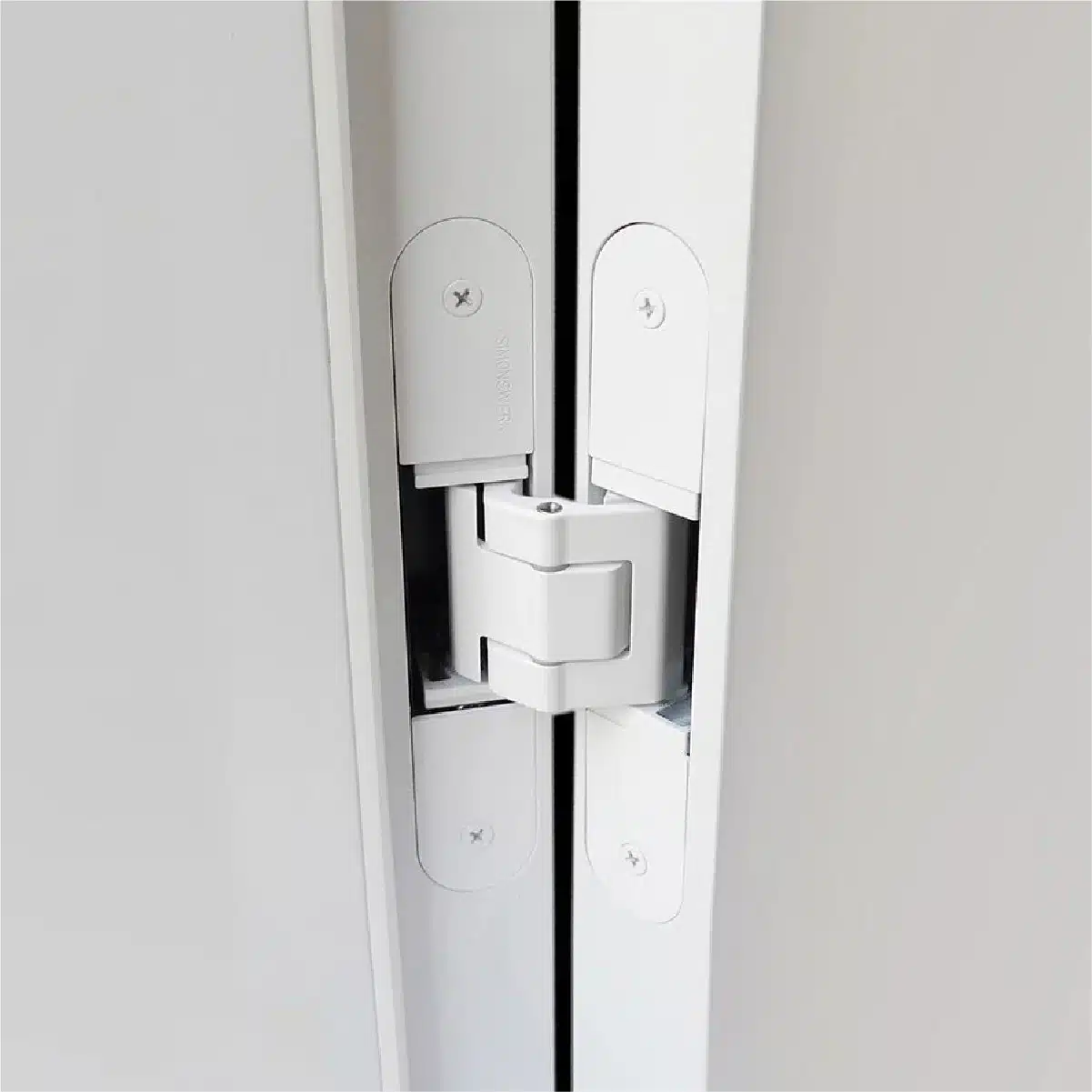

  • Completely concealed hinge system
  • For timber, steel or aluminium frames
  • For unrebated heavy-duty doors
  • Sideways closed hinge body for an aesthetically pleasing mortise appearance
  • Comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm)
  • Maintenance-free slide bearings
Load Capacity 120,0 kg
Overall Length
200,0 mm
Width (door part)
32,0 mm
Width (frame part)
32,0 mm
Cutter Diameter
24,0 mm
Collar Ring Diameter 30.0 mm
Opening Angle 180°



Learn more

TECTUS TE 540 3D
