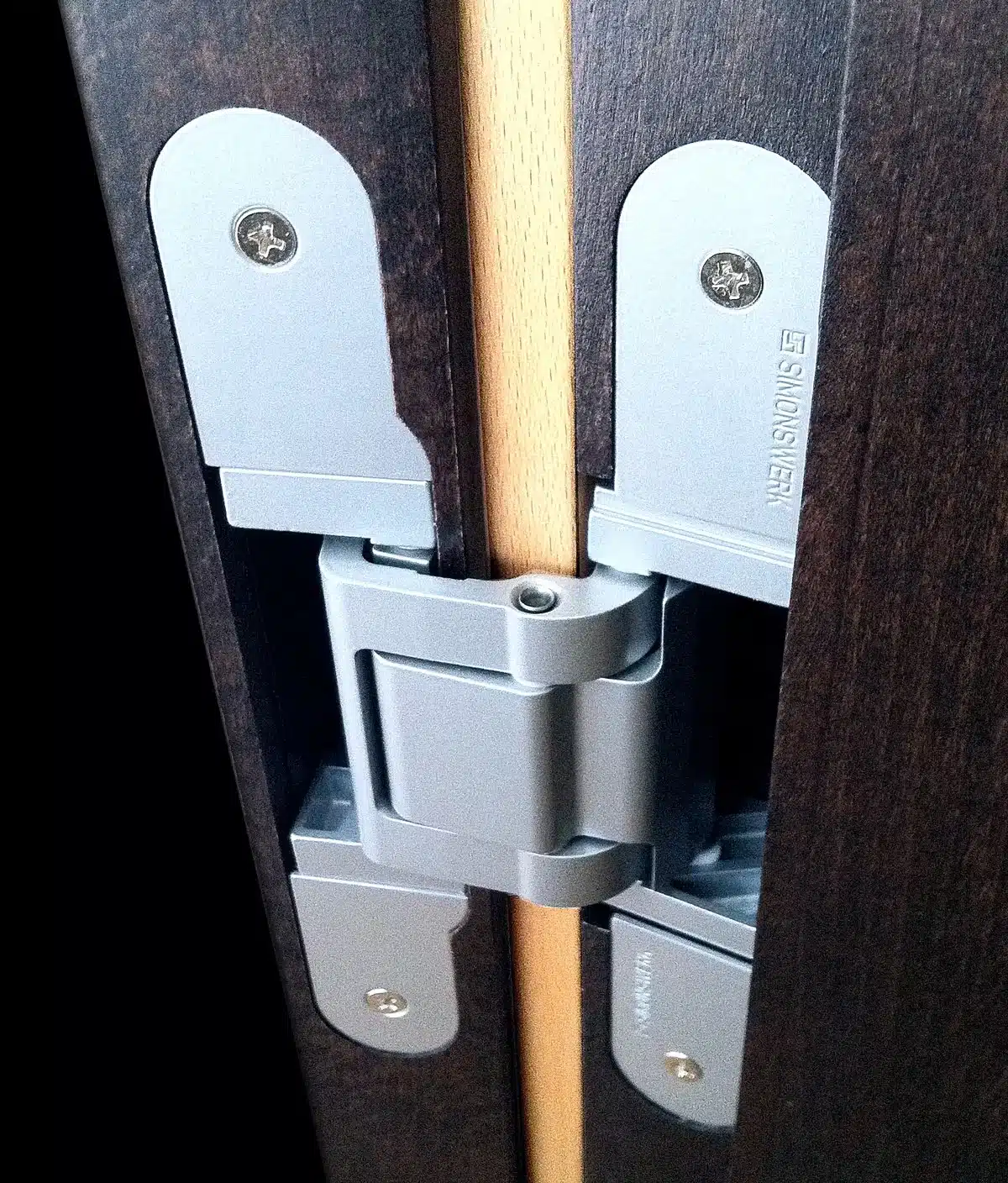

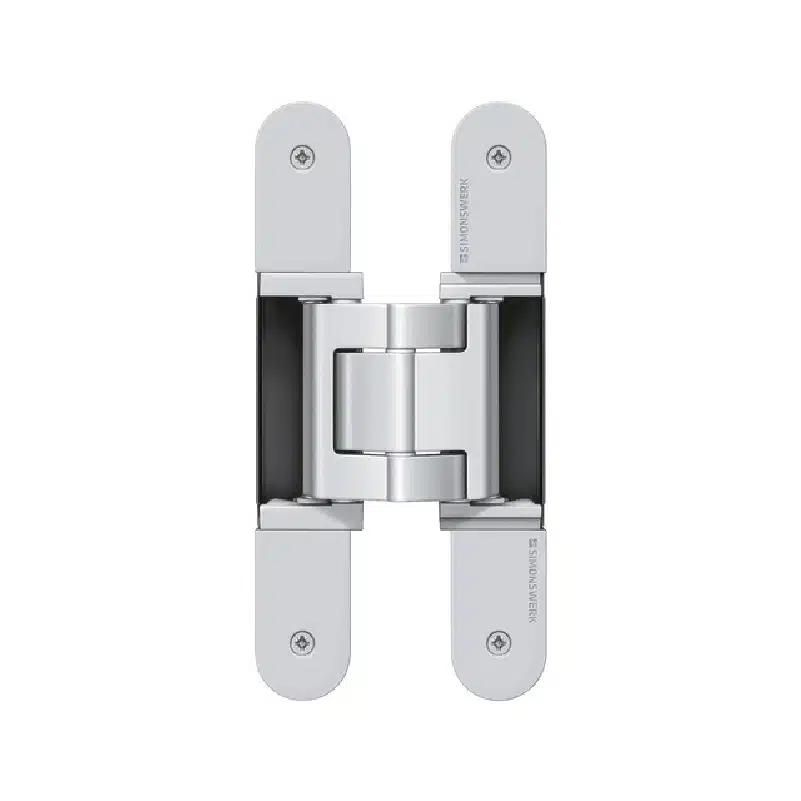

The TECTUS TE 540 3D A8 by SIMONSWERK offers seamless integration for cladded doors (up to 8mm). It handles up to 100 kg, providing precise 3D adjustment for perfect alignment. Ideal for high-end residential/commercial use, it ensures a 180° opening, fitting timber, steel, or aluminum frames. Ultimate hidden design.
The “A8” designation signifies its unique capability to accommodate claddings of up to 8 mm (approximately 5/16 inch) on both the door and frame. This groundbreaking feature allows for the application of diverse finishing materials such as mirrors, laminates, natural stone veneers, or custom panels directly onto the door and frame, achieving a truly flush and hidden appearance when the door is closed. This provides unparalleled creative freedom for designers to integrate door elements into a holistic interior concept
| Load Capacity |
100,0 kg
|
| Overall Length |
200,0 mm
|
| Width (door part) |
32,0 mm
|
| Width (frame part) |
32,0 mm
|
| Cutter Diameter |
24,0 mm
|
| Collar Ring Diameter | 30.0 mm |
| Opening Angle | 180° |
