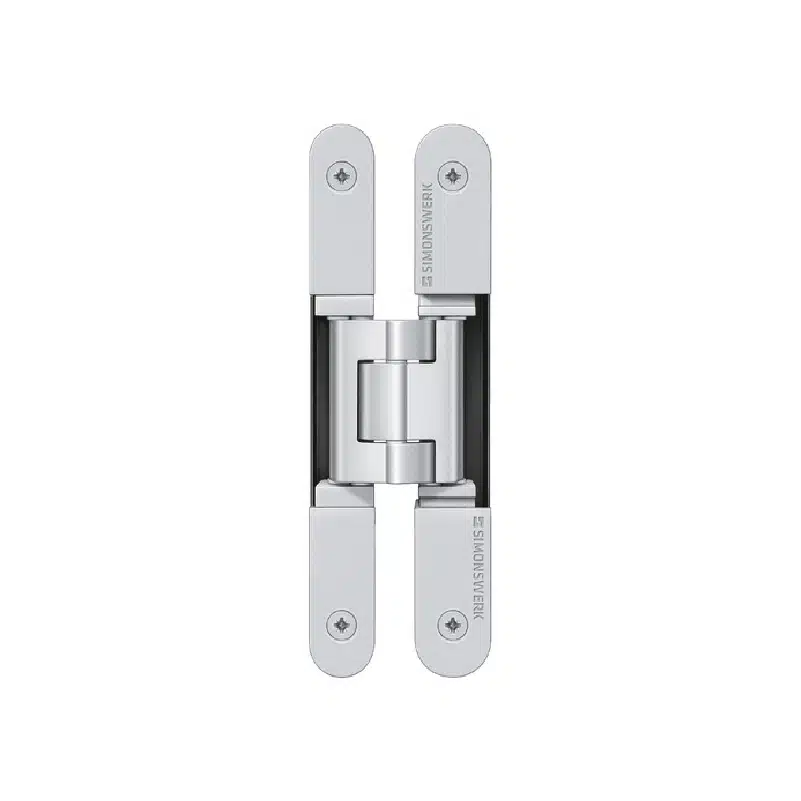

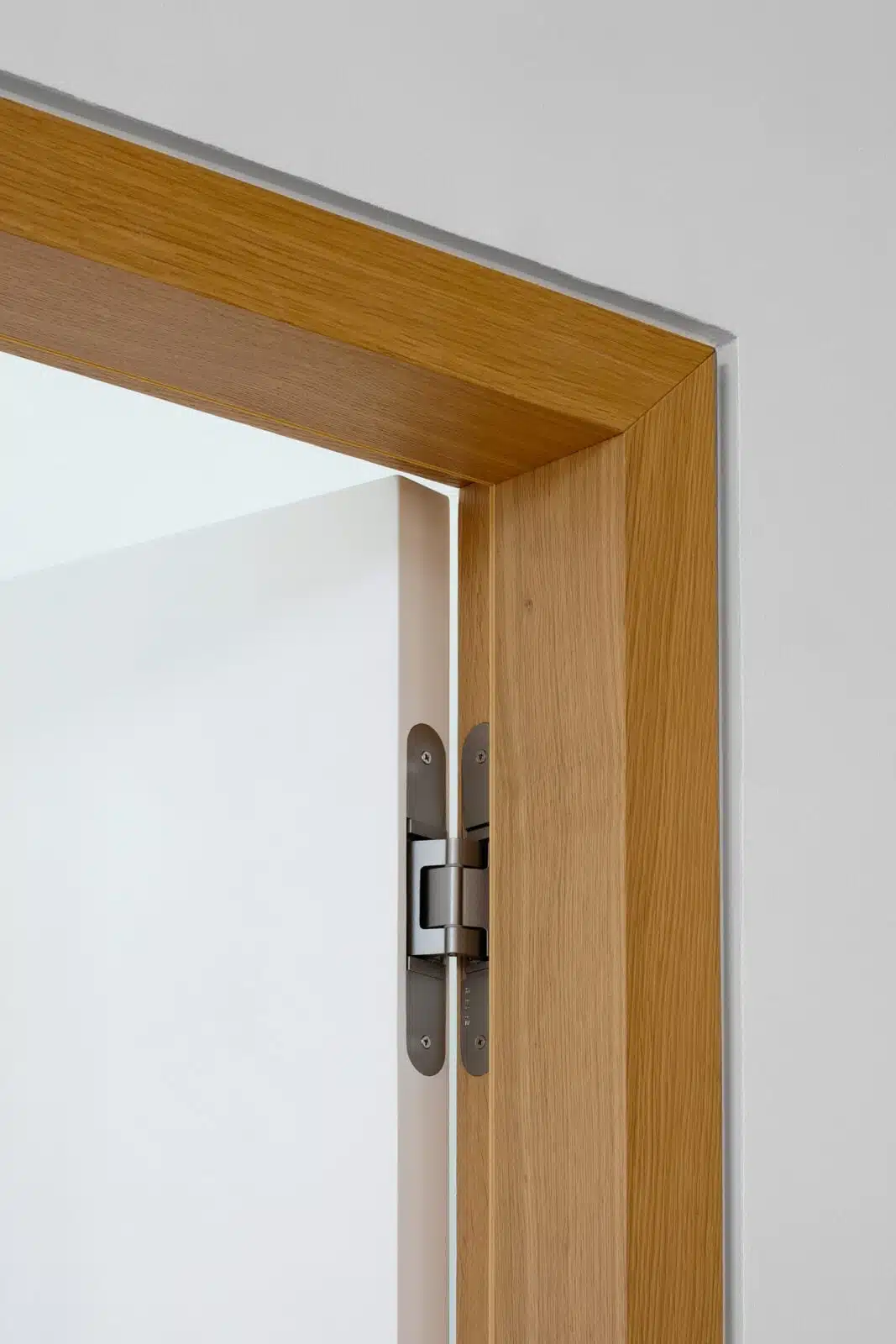

Achieve a sleek, uninterrupted aesthetic with the TECTUS TE 240 3D concealed hinge. Perfect for flush residential doors, this system disappears completely when closed, creating clean lines. Enjoy effortless, precise 3D adjustment for perfect alignment, and a 180° opening angle for full access. Designed for timber, steel, or aluminum frames, it combines sophisticated design with robust functionality for modern spaces.
Information
Completely concealed hinge system
For wood, steel, or aluminum door panels and frames
For flush residential doors
Finger protection due to a small gap between door and frame
Easily adjustable in three dimensions (side +/- 3.0 mm (0.118″), height +/- 3.0 mm (0.118″), compression +/- 1.0 mm (0.039″))
Maintenance-free slide bearings
| Load Capacity | 60.0 kg (132.0 lbs.) |
| Overall Length | 155.0 mm (6.102″) |
| Width (door part) | 18.0 mm (0.709″) |
| Width (frame part) | 21.0 mm (0.827″) |
| Cutter Diameter | 16.0 mm |
| Collar Ring Diameter | 30.0 mm |
| Opening Angle | 180° |
