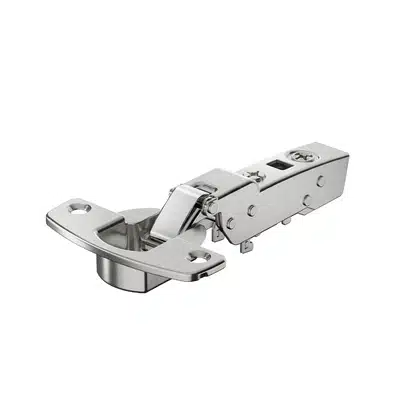

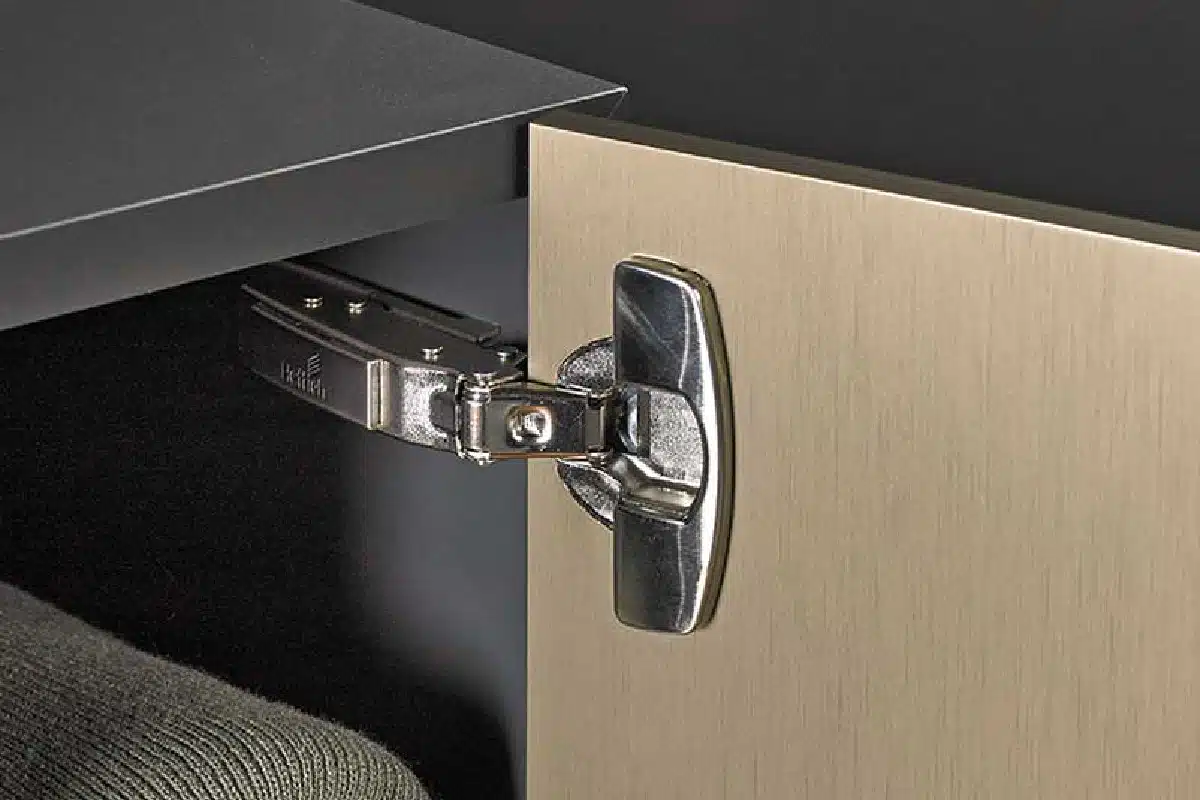

Sensys thick door hinge, door thickness up to 32 mm

With integrated Silent System, with self closing feature (Sensys 8631i)

Quality classification under EN 15570, Level 2

Opening angle 95°

For door thickness 15-32 mm

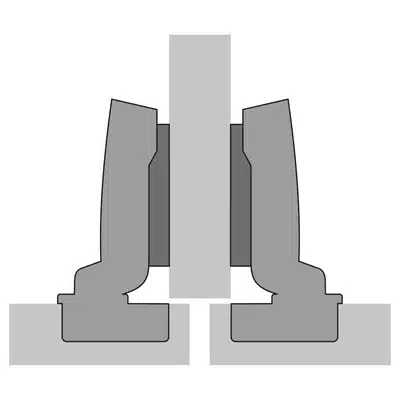

Door mounting option overlay (B 12.5 mm)

TH – drilling pattern 52 x 5.5 mm

Cup depth 12.8 mm

Installation for screwing on (TH 52)

Integrated overlay adjustment +2 mm / -2 mm

Integrated depth adjustment +3 mm / -2 mm

Height adjustment at mounting plate
